HORMUZ WATCH
Tactical Maritime Domain Awareness Through
Edge-First Multi-Sensor Data Fusion
PHILLY 250 MARITIME DEFENSE HACKATHON  |  MARCH 27-29, 2026
Kiumbura N. Githinji  •  Isaac Sasson  •  Eliyahu Mizrahi
CLICK NAMES TO VISIT PORTFOLIOS
// CONTEXT
The Problem
12K+
miles of US coastline to monitor
21M
barrels/day through Strait of Hormuz
95%
of global trade moves by sea
300+
maritime security incidents per year
  • Existing maritime surveillance is cloud-dependent, high-latency, and expensive
  • Adversaries exploit gaps: AIS spoofing, dark transits, fast-boat swarms, mine-laying
  • No edge-first solution exists for denied or degraded environments
// APPROACH
The Solution
"Sensor to commander with low latency on $500 of hardware with zero cloud dependency"
DETECT
Edge ML anomaly scoring on Raspberry Pi 5
Less than 15ms per report
RELAY
AES-256-GCM encrypted ESP32 mesh network with constant-rate cover traffic
ANALYZE
Local LLM on Jetson + RAG vault with 151 intel documents
ACT
Low-latency dashboard threat cards, zero cloud
// PIPELINE
System Architecture
AIS FEED PI-LARAK score_api.py 26.4-26.8N 56.2-56.7E PI-FUJAIRAH score_api.py 25.1-25.5N 56.2-56.6E USB 115200 USB 115200 ESP32 #1 lark-01 ESP32 #2 fuj-01 ESP32 #3 cmd-01 ESP-NOW 2.4GHz 238B PACKET AES-256-GCM USB SERIAL JETSON ORIN command_node.py Ollama + Phi3 Mini FastAPI :8000 vault/ (151 docs) RAG + LLM threat cards WS :8000 DASHBOARD Leaflet + WS threat cards COVER TRAFFIC EVERY 5s
// ML CORE
Anomaly Detection Engine
18.8M
real USCG AIS records trained on (NOAA, June 2024)
100%
recall on 5 real US maritime incidents
RAW AIS 12 fields/report MMSI SOG COG LAT LON... WINDOW deque(20) / MMSI deltas + trends 18 FEATURES 5 z-scores 5 static + 2 derived 3 location 3 windowed 82 VESSEL-TYPE BASELINES ISOLATION FOREST 100 trees | 200K subsample | 4.7MB x 0.6 AUTOENCODER 18>12>6>12>18 | ONNX | 4KB x 0.4 ENSEMBLE 0.6*IF + 0.4*AE score: [-1.0, 0.0] SEVERITY CRITICAL (rule) HIGH < -0.7 MEDIUM < -0.4 LOW/NORMAL OUTPUT score, severity factors, rules rolling_score
18 FEATURES PER REPORT
  • 5 vessel-type z-scores (SOG, speed delta, heading, COG, time gap)
  • 4 static features (name, class, dimensions, speed-size ratio)
  • 3 location features (distance to lane, port, bridge)
  • 4 windowed features (heading std, speed trend, COG std, anomaly count)
  • Sliding window: last 20 reports per MMSI
ML ENSEMBLE ARCHITECTURE
  • 0.6 x Isolation Forest (100 trees, 200K subsample)
  • 0.4 x PyTorch Autoencoder (18 > 12 > 6 > 12 > 18, ONNX export)
  • 82 distinct vessel types with per-type baselines
  • Total model footprint: ~5MB
// DATA
Training Data Sources
NOAA MarineCadastre
Real USCG AIS, June 2024, 30 days
18.8M reports
NOAA Historical
Incident validation days (Mar-Jun 2024)
5 incident days
OFAC SDN List
Sanctioned vessels and entities
treasury.gov
AISstream.io
Live global AIS via WebSocket
Real-time API
IMB Piracy Centre
Incident coordinates and timelines
Public map
Published OSINT
NTSB, IMO, news, Wikipedia for incident reconstruction
28 reference docs
// INTELLIGENCE
The Vault: RAG Knowledge Graph
151 structured intel documents powering contextual threat assessment
VAULT 151 INC 11 VES 30 ENT 26 TAC 16 GEO 18 FLAG 15 SAN 10 REF 28 94% CROSS-REFERENCED VIA [[WIKI-LINKS]]
11
Incidents
Stena Impero, Gulf of Oman, Fujairah, Mercer Street...
30
Vessels
Known good + known bad profiles with MMSI, flag, sanctions
26
Entities
IRGC, IRISL, 22 shell companies, ownership chains
16
Tactics / TTPs
Fast-boat swarm, AIS dark transit, limpet mine, drone strike
18
Geography
Hormuz, Bandar Abbas, Fujairah, shipping lanes with lat/lon
15
Red Flags
Behavioral and structural anomaly indicators
10
Sanctions
OFAC advisory context and SDN mappings
28
References
Intel reports, published analysis, OSINT
Alert triggers vault query → top-5 chunks retrieved → Phi3 Mini on Jetson generates threat assessment
Ties into scraper pipeline: OFAC SDN, open-source intel, and incident databases feed the vault
// COMMAND NODE
Jetson Orin Nano: Command Node
MESH RX serial_listener /dev/ttyUSB0 115200 baud DECRYPT AES-256-GCM verify GCM tag expand_alert() ENRICH search_vault(query) top-5 chunks by TF ~2000 char context VAULT (151 docs) incidents, vessels, tactics... CORRELATE cross-ref zone match OFAC SDN multi-sensor fuse LLM ASSESS Ollama + Phi3 Mini alert + vault_context + prompt POST :11434/api/generate structured JSON output fallback: rule-based card THREAT CARD threat_title summary + indicators confidence: 0.0-1.0 recommended_action vault_references[3] BROADCAST WebSocket :8000 all connected clients ai_processing status broadcasts to dashboard at each step
HARDWARE
  • Orin Nano, JetPack 6.x, ~$250
  • Ollama + Phi3 Mini (4GB, runs locally)
  • FastAPI + uvicorn on port 8000
  • WebSocket push to all connected dashboards
  • Rule-based fallback if LLM unavailable
RAG INTEGRATION
  • Vault indexed at startup (151 markdown files)
  • Keyword search ranks chunks by term frequency
  • Top-5 chunks injected into LLM prompt (~2000 chars)
  • Generates: threat level, indicators, historical precedent
  • Output: structured FLASH threat card to dashboard
// COMMUNICATIONS
ESP32 Encrypted Mesh Network
ESP-NOW ESP-NOW ESP-NOW 2.4GHz ESP32 #3 cmd-01 ESP32 #1 lark-01 ESP32 #2 fuj-01 Pi-Larak USB 115200 Pi-Fujairah USB 115200 Jetson Orin USB 115200 FLOOD RELAY TTL=3 FNV-1a DEDUP (16-ENTRY RING) AT EACH NODE
238-BYTE PACKET STRUCTURE
0xAA magic 1B v1 1B type 1B TTL 1B time 4B len 2B ENCRYPTED PAYLOAD 200 bytes (padded) + AES-256-GCM 200B GCM TAG auth proof 16B NONCE random 12B TOTAL: 238 BYTES FIXED (COVER + REAL INDISTINGUISHABLE)
AES-256-GCM
Every packet encrypted
238 bytes fixed size
Tamper = auth fail
ESP-NOW
2.4GHz peer-to-peer
~150m WiFi range
2-15km with LoRa
COVER TRAFFIC
Dummy packets 5s interval
Defeats traffic analysis
Real/fake indistinguishable
SERIAL FRAMING
[0x7E] [2B len] [data] [0x7E]
USB to wireless bridge
State-machine parser
// SCENARIOS
5 Hormuz Incident Replays
Real incidents reconstructed as AIS replay scenarios for live demo
1
Stena Impero Seizure
Jul 2019
3 fast boats at 35kt, tanker AIS blackout, forced course reversal to Iran
2
Gulf of Oman Tanker Attacks
Jun 2019
Front Altair + Kokuka Courageous hit by limpet mines, rapid deceleration
3
Fujairah Port Sabotage
May 2019
4 tankers at anchor, 2 go dark simultaneously, coordinated AIS gaps
4
Mercer Street Drone Attack
Jul 2021
3 drone strikes over 2 days, 20-min AIS gap, vessel slows to 3kt
5
Mine-Laying Patrol
Iran Ajr
Unnamed Class B at 3kt, stop-start every 500m in shipping lane
All 5 incidents detected by the ML ensemble with correct severity classification. 672 total AIS reports.
// LIVE DEMO
System Demo
EDGE DETECTION
  • AIS data flows into Pi edge nodes: Larak + Fujairah sectors
  • Green = normal traffic, Red = anomalies
  • Pi nodes glow on detection with MMSI and severity
ENCRYPTED MESH
  • Alerts encrypt via AES-256-GCM, relay through ESP32 mesh
  • Cover traffic makes real/dummy packets indistinguishable
LLM ANALYSIS
  • Jetson pipeline: DECRYPT > ENRICH > CORRELATE > ASSESS
  • RAG vault (151 docs) feeds Phi3 Mini threat assessment
  • FLASH threat card pushed to dashboard via WebSocket
// DASHBOARD DEMO
Hormuz Watch Demo
LIVE DASHBOARD
  • Leaflet map of Strait of Hormuz with TSS lanes
  • Vessel tracking with color-coded threat classification
  • Real-time alert feed with severity levels
INCIDENT REPLAY
  • 5 real Hormuz incidents replayed through the scoring pipeline
  • Anomalies detected and classified in real time
THREAT CARDS
  • LLM-generated threat assessments with vault context
  • Recommended actions pushed to operator screen
// MOBILE APP
React Native Mobile App
Built with Expo, 5 tabs for full tactical awareness on the go

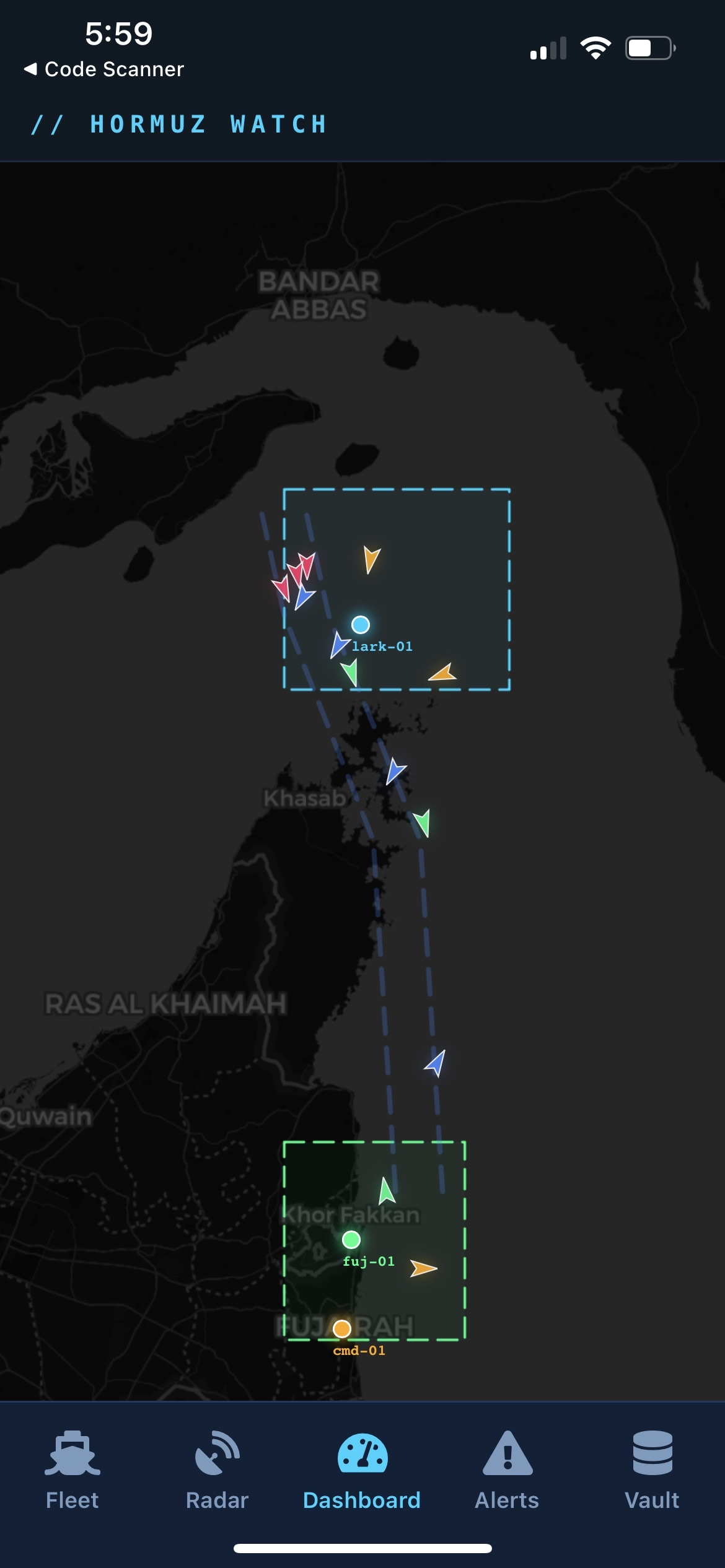

Dashboard
DASHBOARD

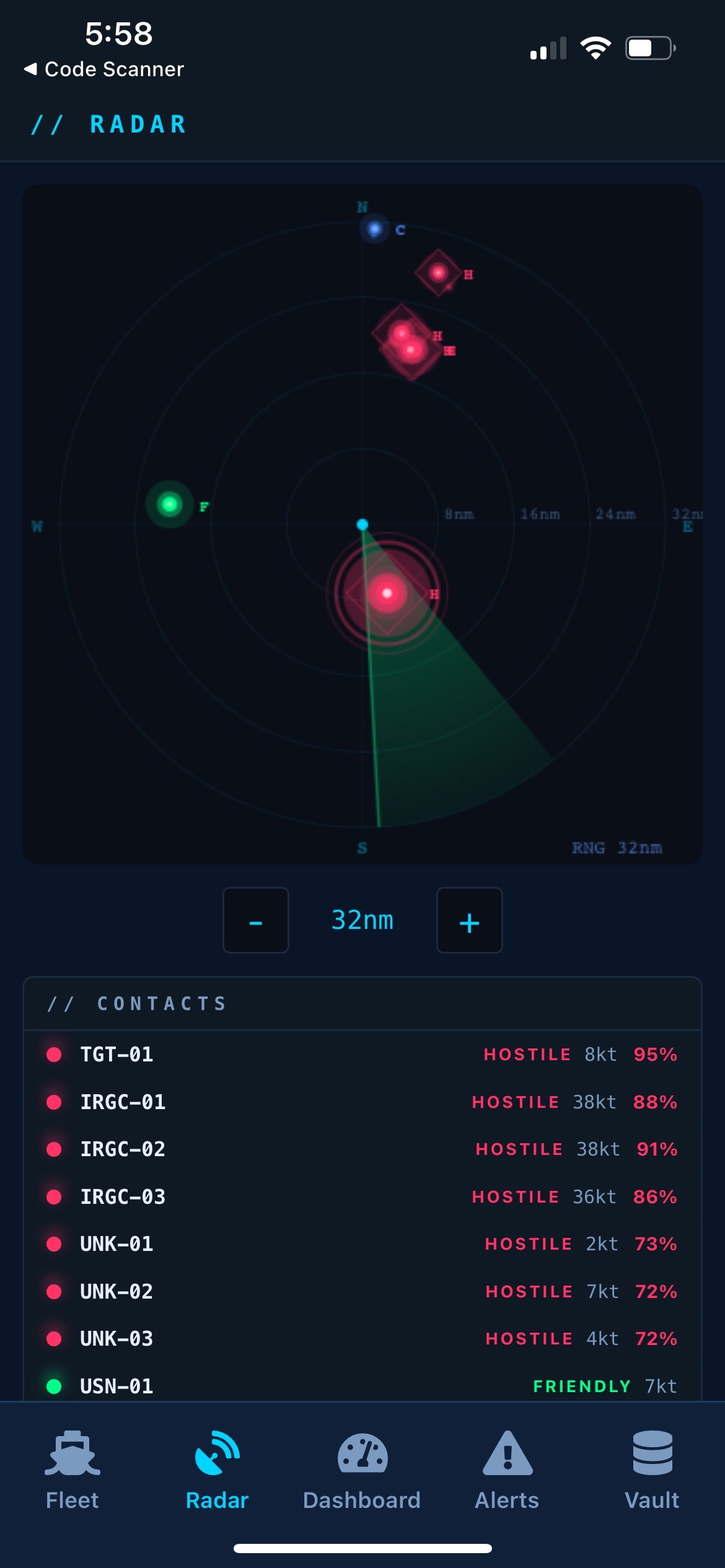

Radar
RADAR

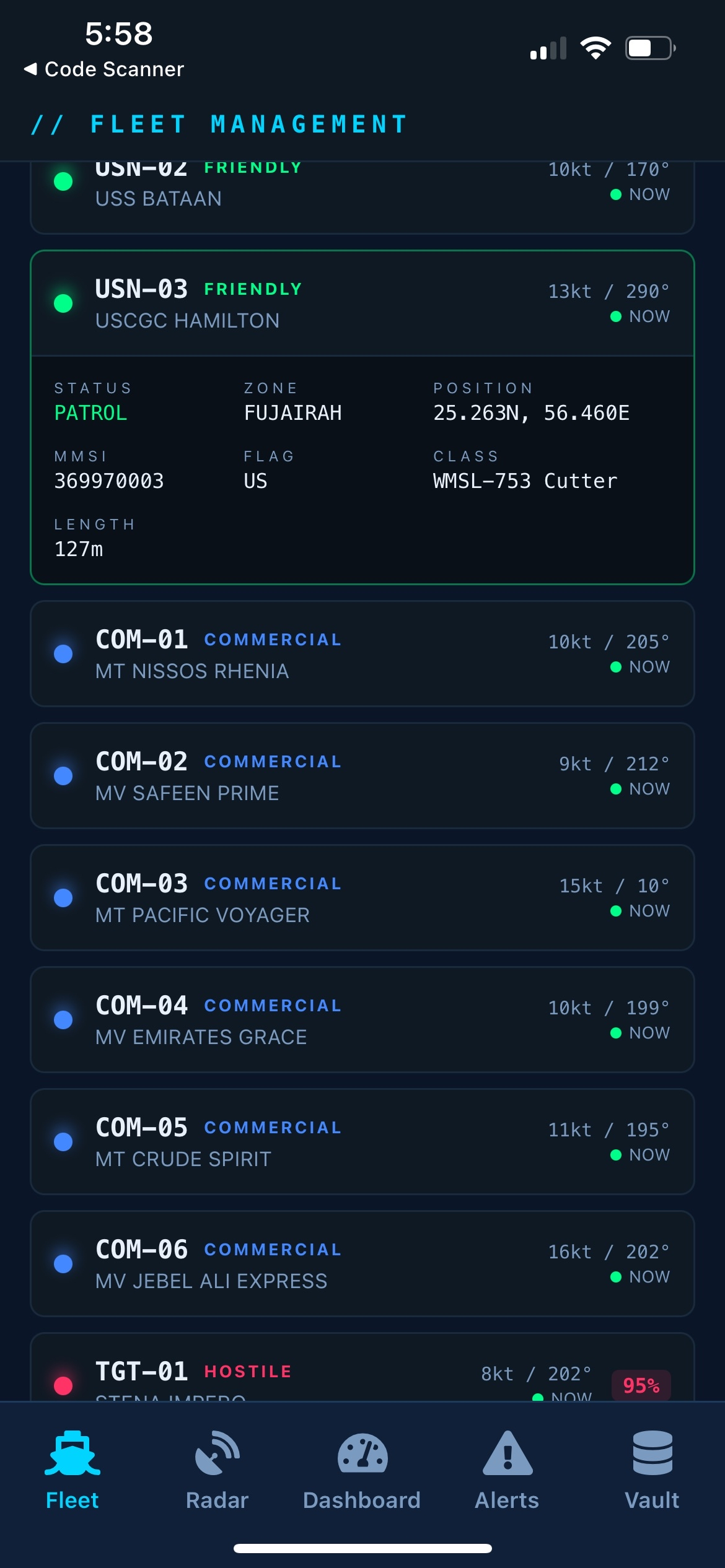

Fleet
FLEET

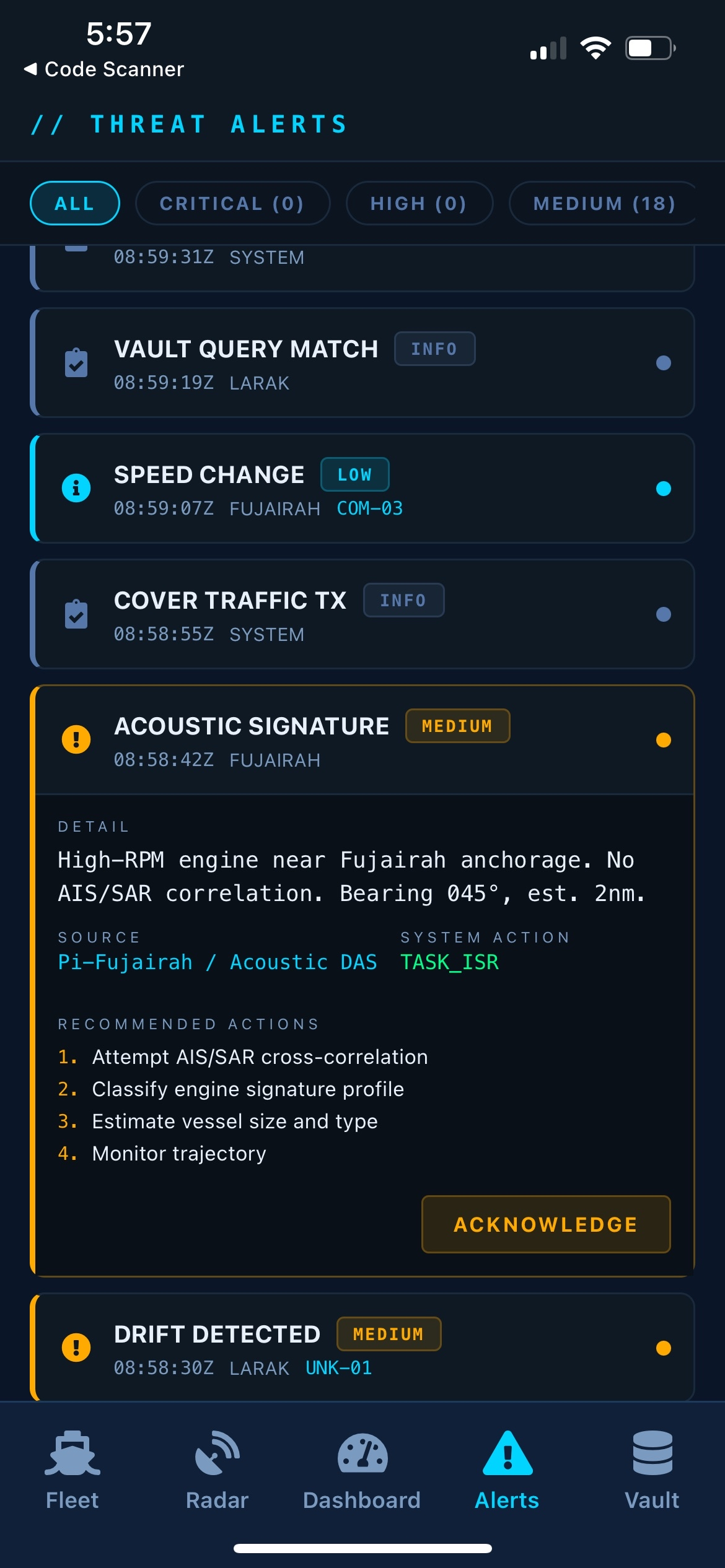

Alerts
ALERTS

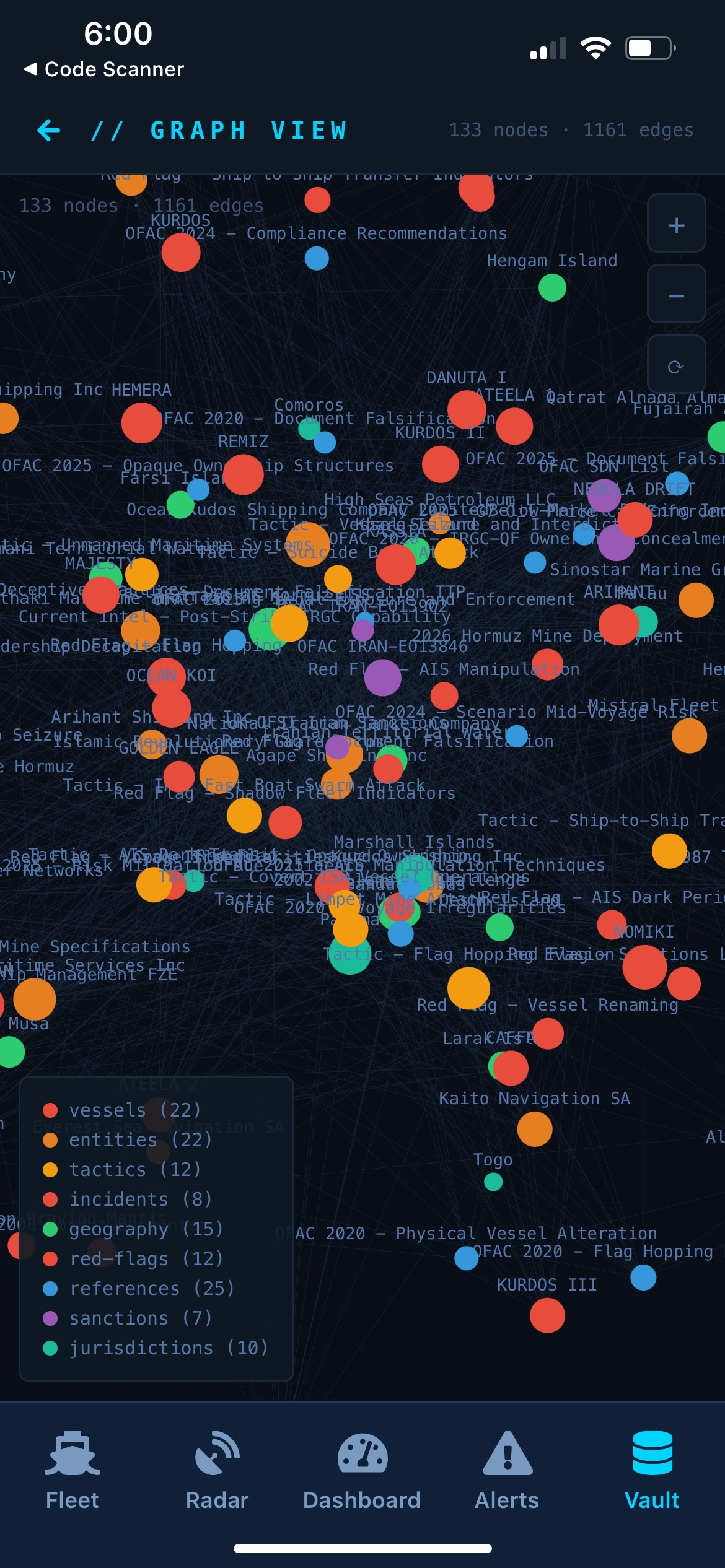

Vault
VAULT
// PROOF
Validation Results
All tests PASS, real data, real incidents
5/5
real incidents
detected
100%
recall
(ML-only)
137
reports/sec
throughput
8/8
validation
tests PASS
MV DALI (Baltimore Bridge)
Score -0.586
Top 6.1%
APL Qingdao (Chesapeake)
Score -0.408
Top 22.4%
Pelican Island (Galveston)
287/607 flagged
Bridge strike
MSC Michigan VII
Score -0.406
Top 12.6%
M/V Michipicoten (Lake Superior)
Score -0.554
Top 35.7%
// ECONOMICS
Cost + Scalability
HARDWARE COST
2x Raspberry Pi 5 (16GB)
$150
1x Jetson Orin Nano
$250
3x ESP32
$30
Antennas + cables
$20
TOTAL HARDWARE
~$450
WHY THIS MATTERS
  • Cloud dependency: $0, runs fully offline
  • Deployment footprint: less than 20MB total
  • Nodes are disposable and independently replaceable
  • Add a zone = add a $75 Pi + $10 ESP32
  • Scales from single laptop demo to multi-zone mesh
  • Graceful degradation at every layer
HORMUZ WATCH
Edge-first.   Zero cloud.   Low-latency detection.
$450 HARDWARE
<20MB DEPLOY
100% RECALL
